JMeter Flex Tutorial with UBIKLoadPack

By:

JMeter Flex Tutorial with UBIKLoadPack

Starting Point

We used the provided tutorial and demo as our starting point.

http://www.ubik-ingenierie.com/blog/load-testing-flex-with-jmeter-made-easy/

Highlights of UBIKLoadPack Flex

Dynamically Convert AMF request to XML while Recording
  • While recording through proxy requests will automatically be converted into XML.
  • ULP_AMF Sampler created
  • Simple viewing of object

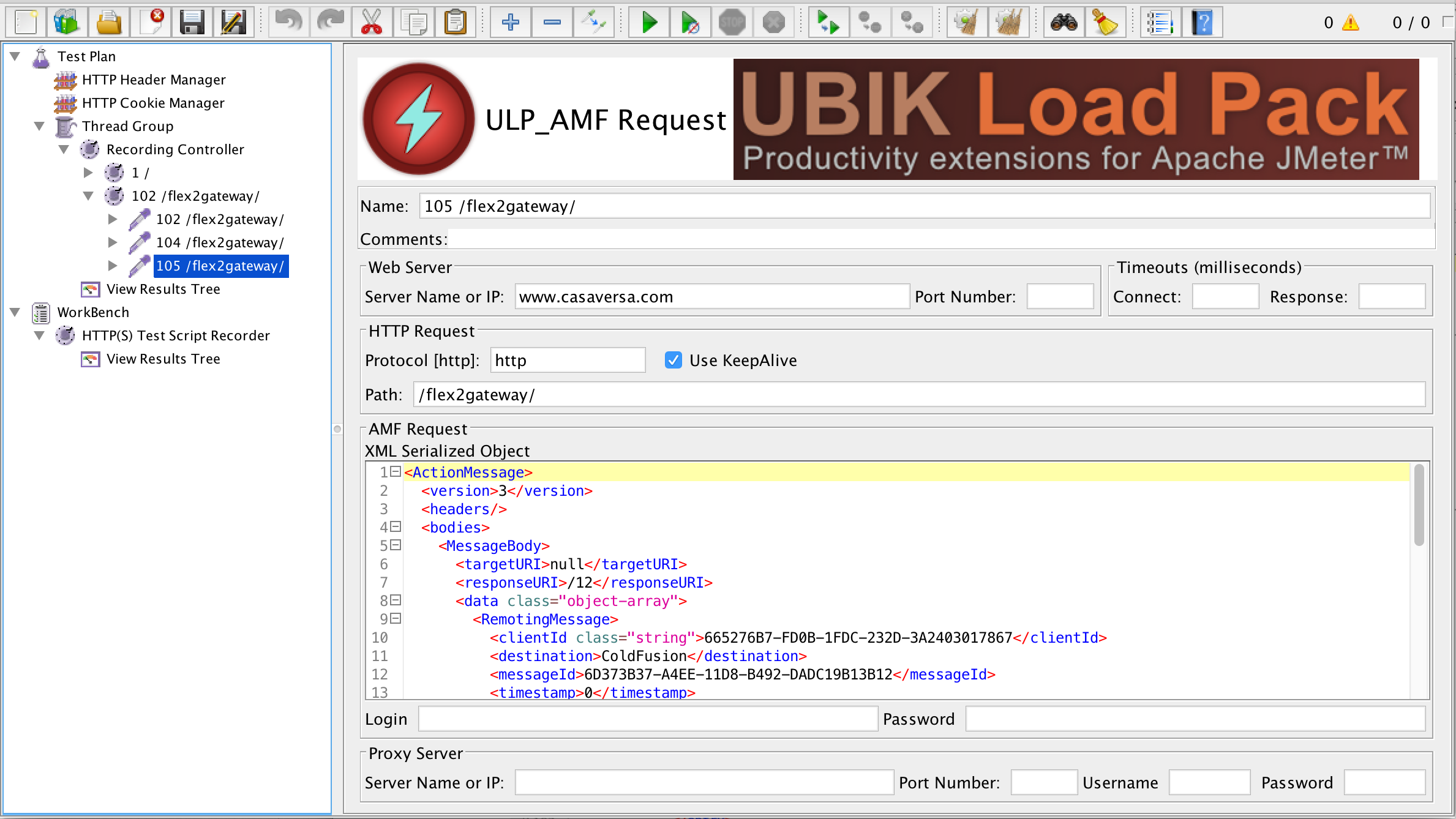

Screen Shot 2015-11-13 at 4.32.19 PM
Make the tests dynamic via string parameter substitution
  • Update XML with ${parameter}
  • Integrate with Configuration and CSV Config

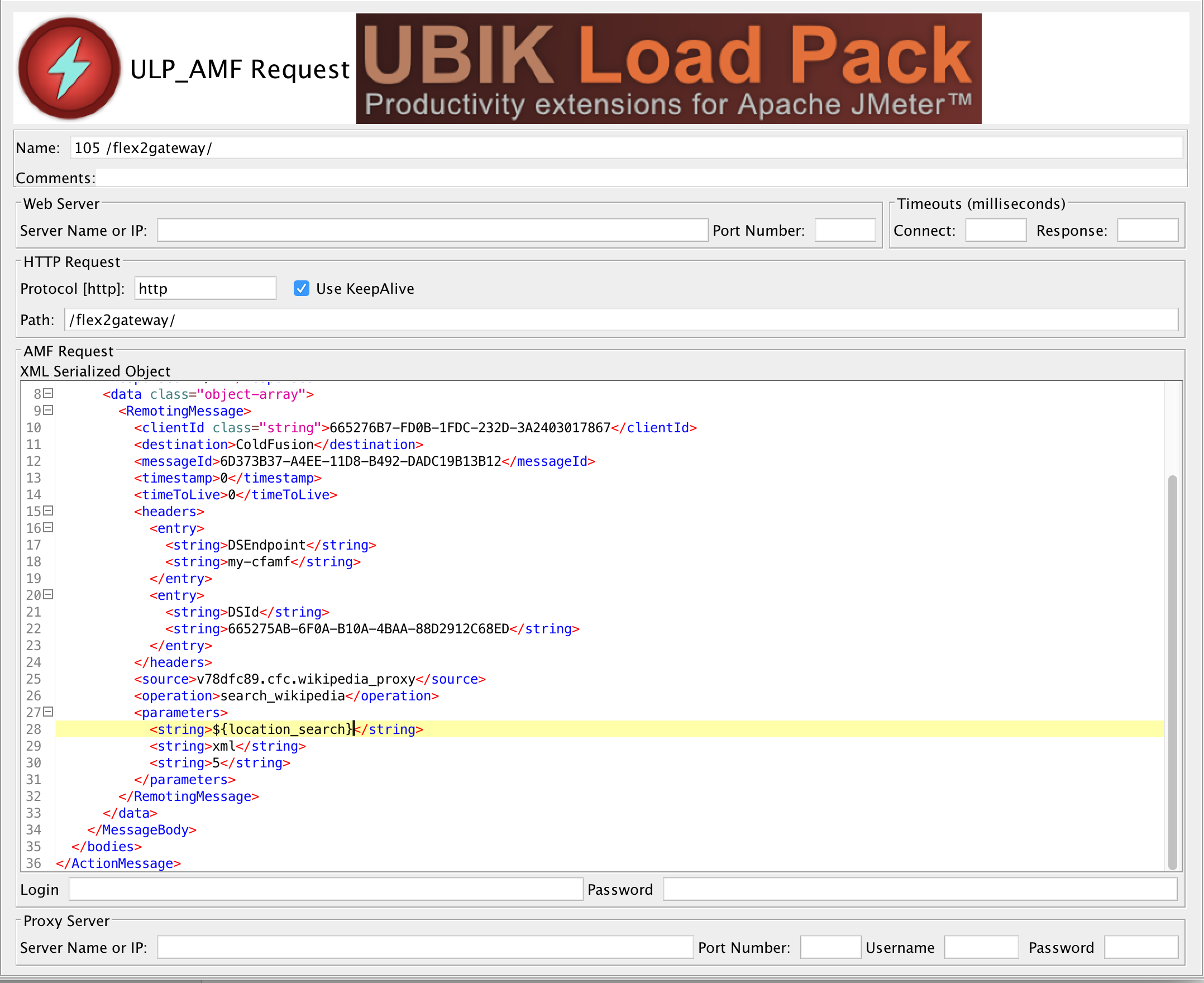

Screen Shot 2015-11-13 at 5.02.37 PM
Convert response to XML
  • Extracts XML into Variable as a PostProcessor
  • Extracts XPATH assertions or extractor as we would for any XML response
 Screen Shot 2015-11-13 at 4.40.47 PM

Scaling the test on RedLine13

We will pick up from their demo taking this tutorial and testing on multiple servers in the cloud.

Example JMX file is available here.

Start Test with this plan with 2 serversScreen Shot 2015-11-13 at 4.53.07 PM

JMeter version 2.13

and Save response data

Screen Shot 2015-11-13 at 4.53.23 PM
Setup our Servers

  • 1 spot instance in Virginia
  • 1 spot instance in Ireland

Screen Shot 2015-11-13 at 4.54.29 PM

Screen Shot 2015-11-13 at 4.54.34 PM

Plugin

  • Select our plugin
  • setup our UBIKLoadPackLicense
Screen Shot 2015-11-13 at 4.54.43 PM
Start TestScreen Shot 2015-11-13 at 4.54.52 PM
Graph ResultsScreen Shot 2015-11-15 at 9.45.02 AM
JTL Files and information

  • deeper inspection of UBIKLoadPack output
Screen Shot 2015-11-15 at 9.57.52 AM
